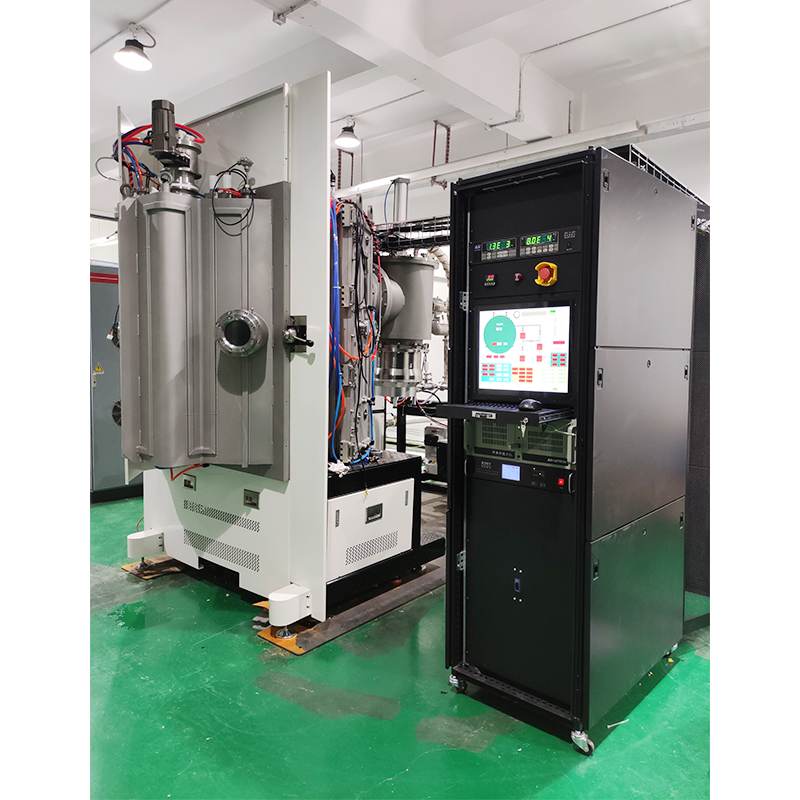

Magnetron Ion Coating Machine

ADV-YK1000-01

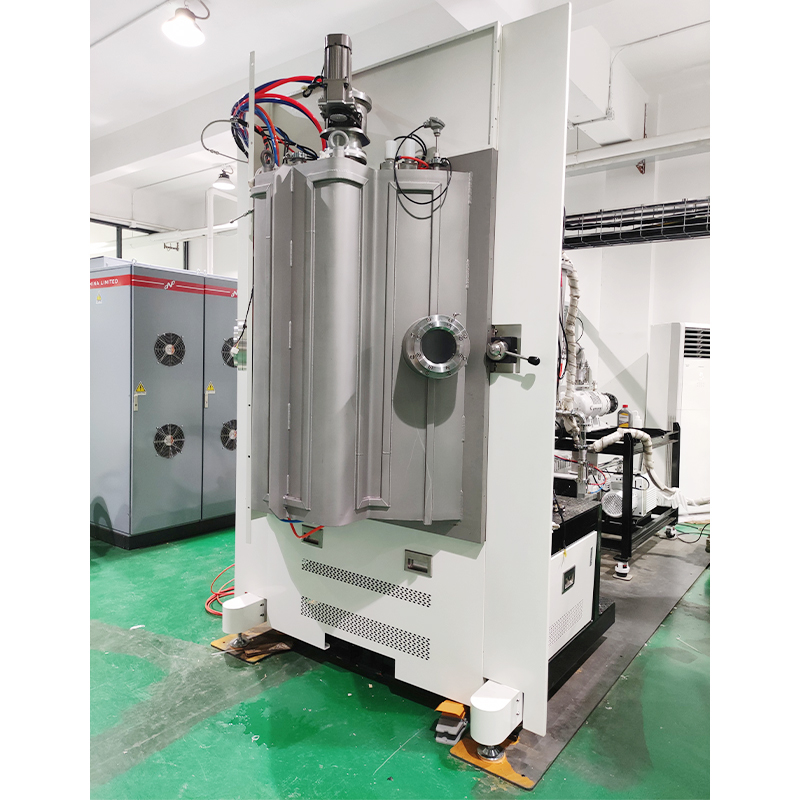

Vacuum chamber specifications (mm): Customized according to customer needs, vertical, front-opening stainless-steel vacuum chamber with an externally welded water-cooling channel.
The rotation speed of the turntable is variable frequency adjustable, 304 stainless steel, and the turntable can be biased.
The heating tube is equipped with a PID intelligent temperature control heating system.
Ultimate pressure: 5.0 x10-4Pa. Pumping speed: The pumping time from atmosphere to 5.0x10-3Pa is less than 15 minutes.
The vacuum chamber is equipped with a flat target and a rotating cylindrical target. The target position distribution can be flexibly adjusted, and the film uniformity is excellent.
The plated film has the advantages of strong adhesion and high density, which can effectively improve the salt spray resistance, wear resistance and surface hardness of the product, meeting the needs of high-performance film preparation.
